CNC wire cutting EDM
您的位置: 首頁 > 機床產品 > CNC wire cutting EDM
CNC wire cutting EDM
發布時間:2020-10-10瀏覽次數:1126

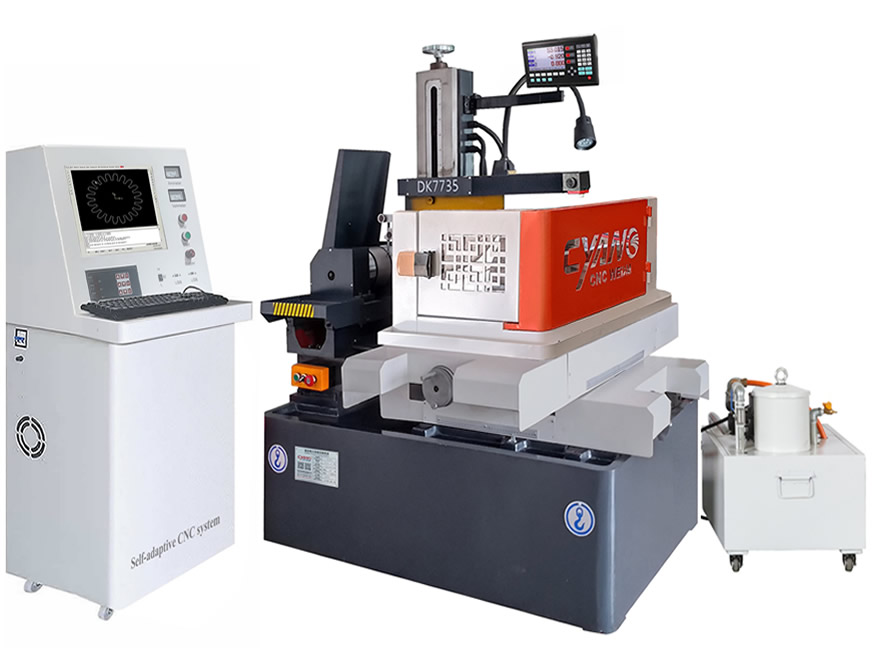

  • DK7725/DK7735/DK7745 wire cutting machine
  • DK7750/DK7763/DK7780 wire cutting machine
  • 30-90 degree large taper wire cutting machine

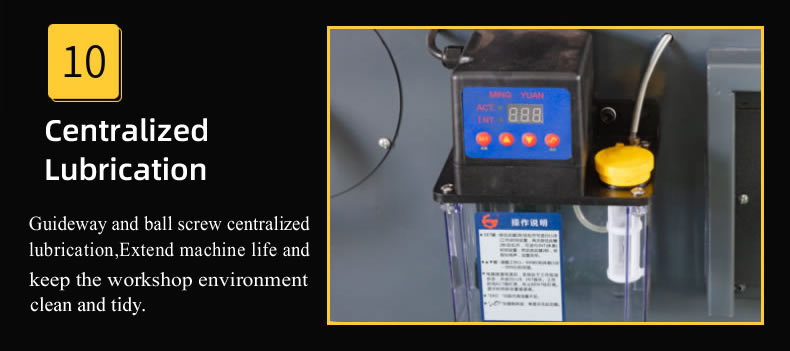

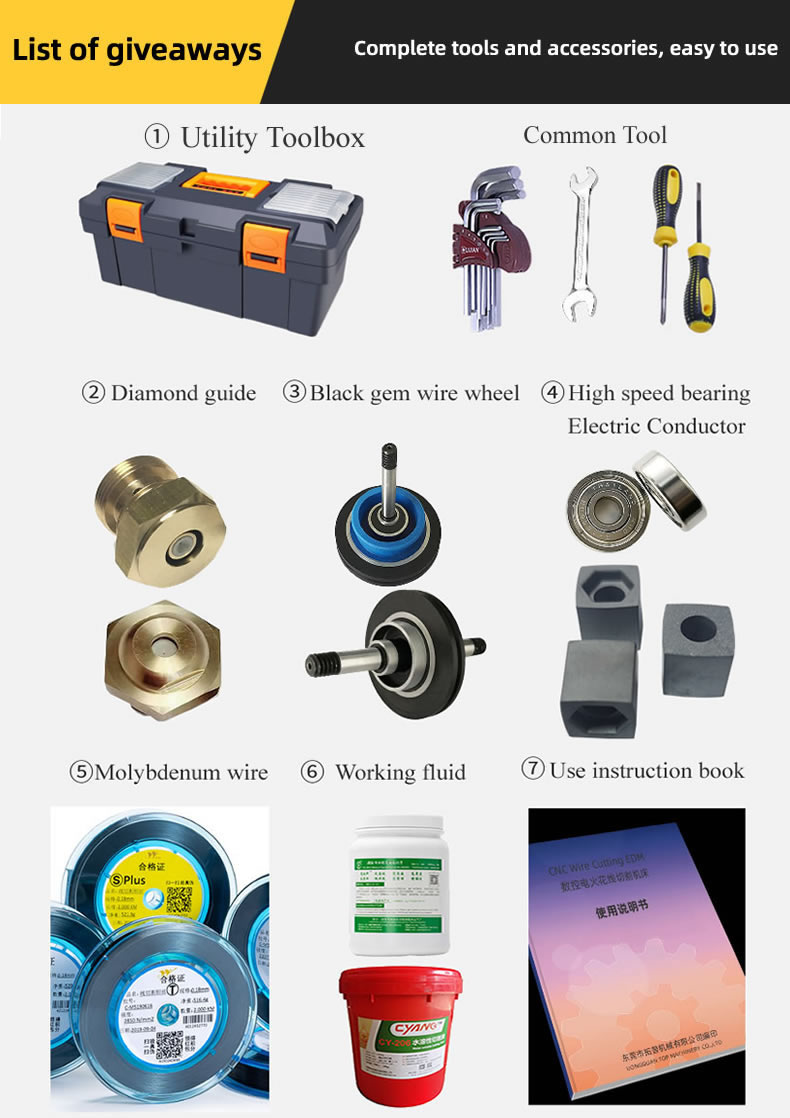

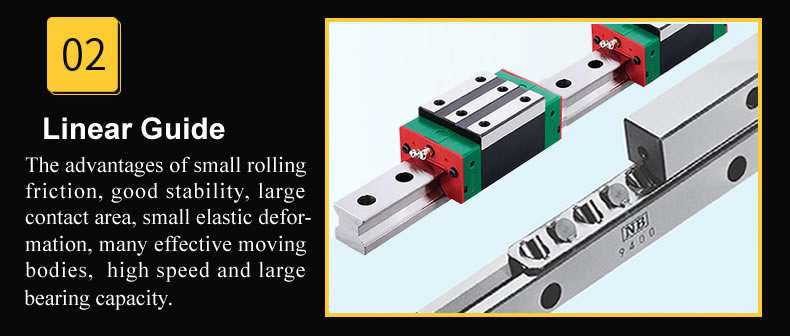

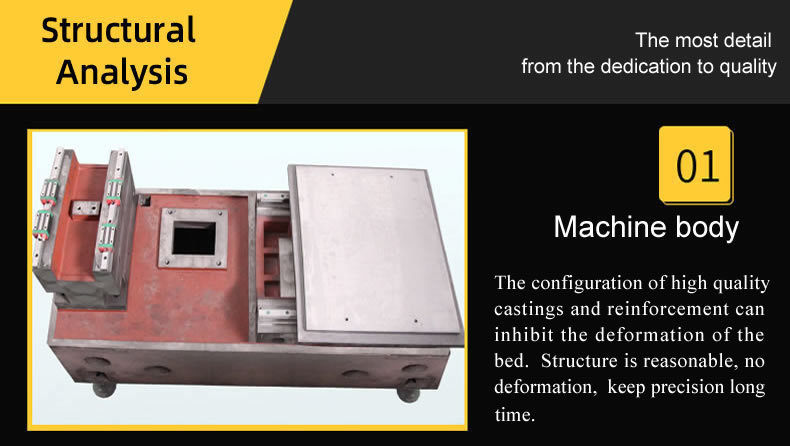

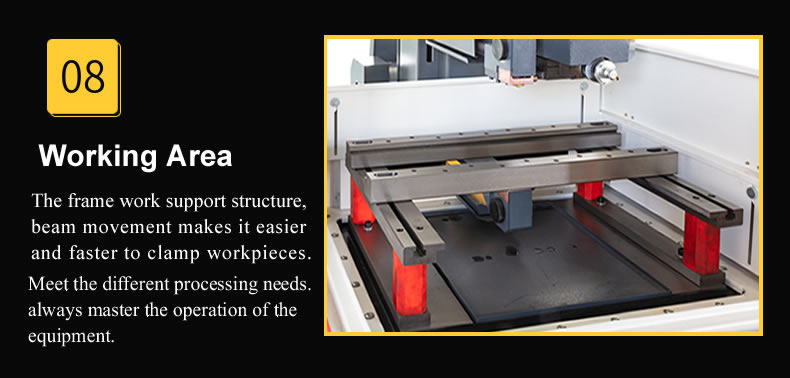

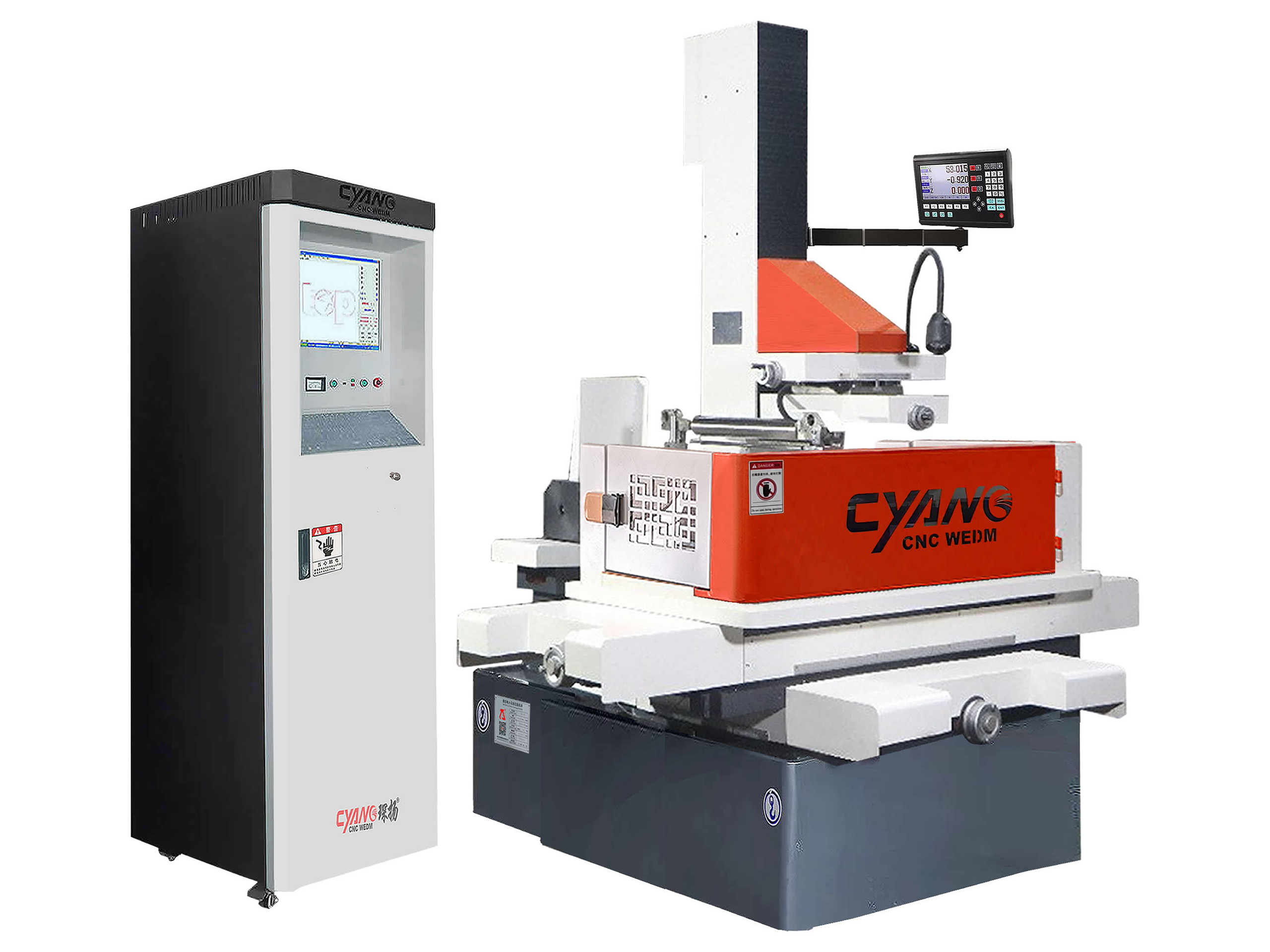

CNC WIRE CUTTING EDM

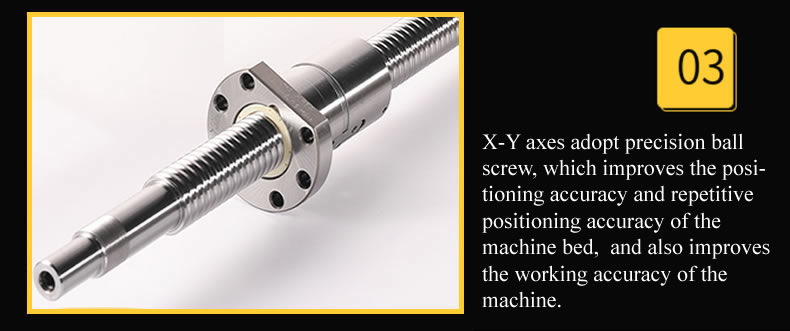

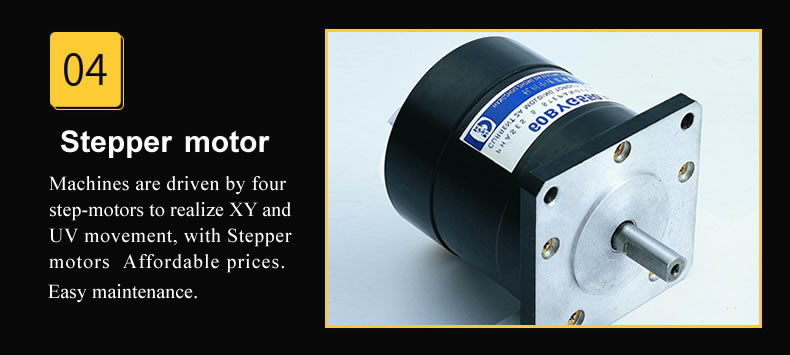

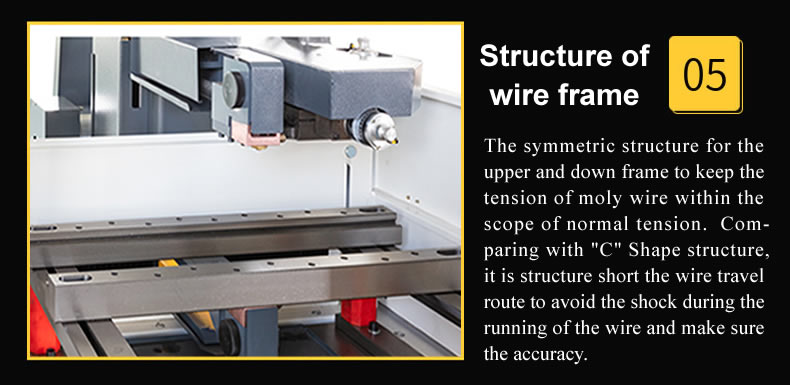

WEDM take wire (Molybdenum wire or Tungsten and Molybdenum alloy wire ) as electrode, working liquid as media, Electrical discharging happened between the electrode and the work piece by using of the high frequency impulse power and the high peak current to bring high heat and high energy to erode the work piece. The preconceived track of the wire is controlled by the moving of X-Y axis and U-Y axis which are driven by the machine. Then the work piece is processed.

Medium speed wire cut EDM is a new generation of EDM machines .

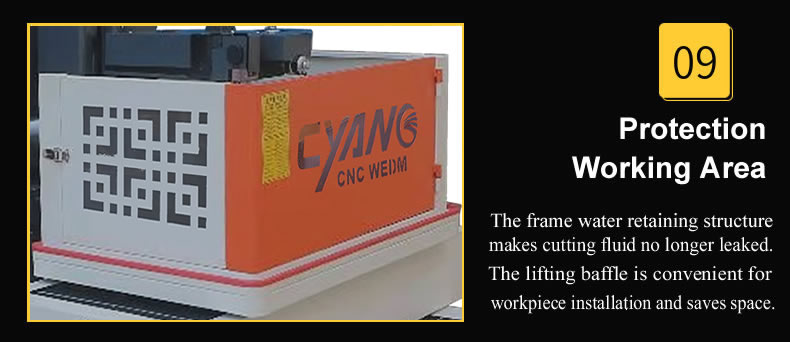

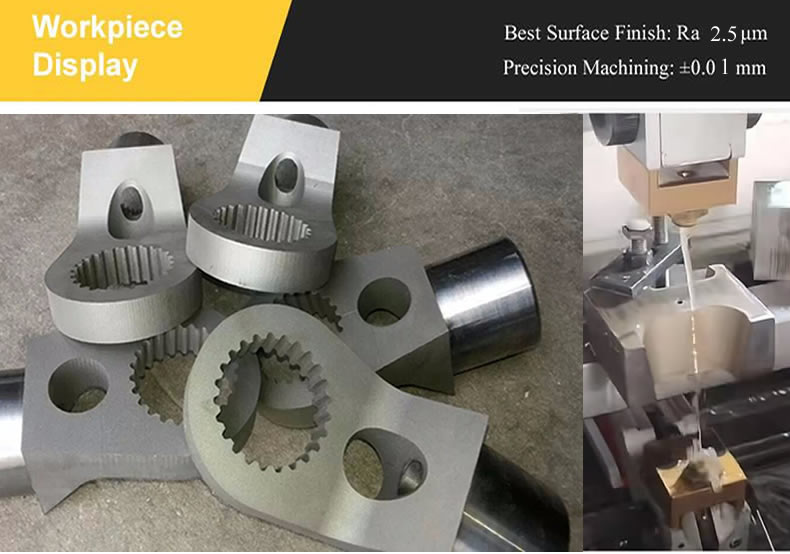

"CYANG" machines featured with beautiful shape, novel structure, superior performance, and convenient operation. Meanwhile they are of good rigidity, small cutting force , big load bearing, steady movement, and safety operation. which are widely used in the fields of moulds, automobile parts, aeronautics and astronautics, electronic instrument, military, light industry, and household appliances.they are suit to cut the workpiece of high precision, fairly good rigidity, high toughness, especially the cold die, extrusion die, plastic mould, gear cutter hob, precision component (including big taper, same taper, unequal cone, laid abnormity and etc.

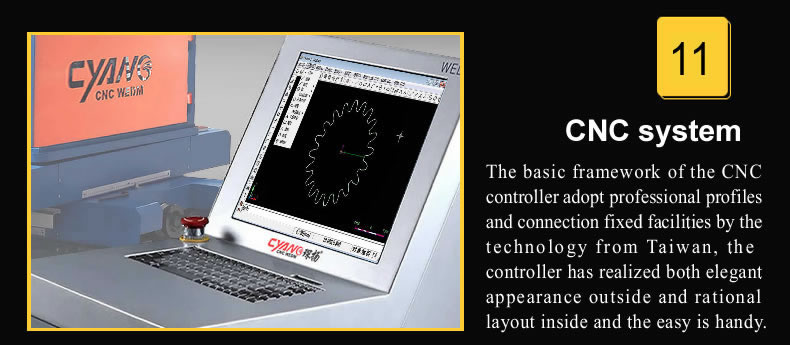

INTELLIGENT CNC SYSTEM

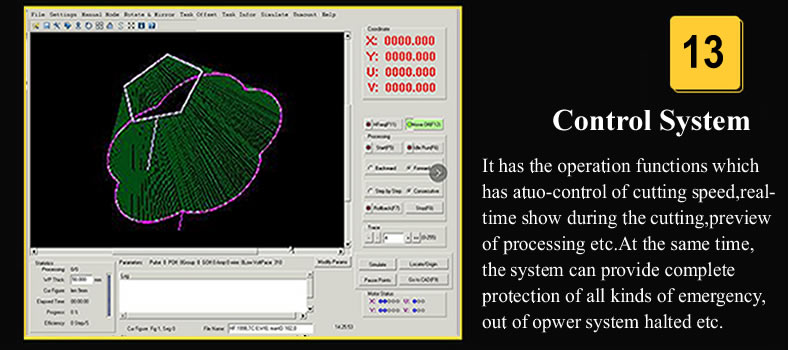

 WEDM X8 Automatic control System  has the operation functions which has atuo-control of cutting speed,real-time show during the cutting,preview of processing etc.At the same time,the system can provide complete protection of all kinds of emergency,out of opwer system halted etc. To avold reject the workpiece.

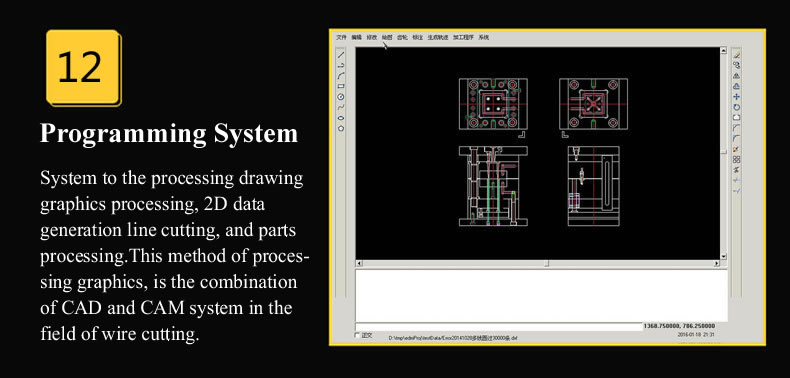

Support Graphic drive and auto program, user does not need to contact the code, only need to set the processing technics for the graphic; meanwhile , support 3B and G-Code generated by other software.All kinds of processing ways can be comblned together flexibility (processing ways include Continuous, single segment, forward, Converse, Reverse etc.)

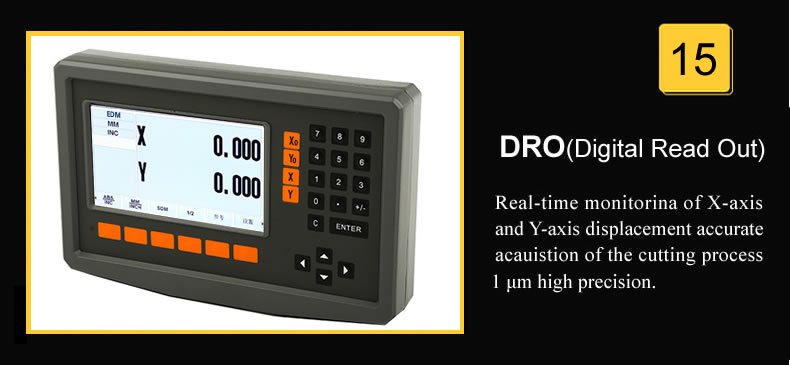

Real-time monitor the processing status of X、Y、U、V axis on machine. Preview of processing ,real-time show processing,The processing graphic can be amplifled or shortened.

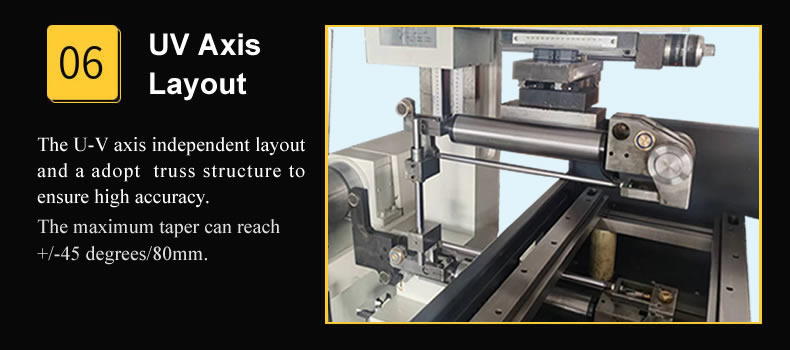

Adopt 4 axis linkage control technic to process taper workplace, process the top and bottom shaped taper convenlently, make the complicated processing easy and exactly. Process track with 3D designed.

With a large storage capacity database, which accumulated from many experiences. User can choose the suitable parameter according to deferent working conditions. Users can adjust machining parameters to establish a database at any time according to their own experience.

Support pitch compensation and time-delay for clear angle,delay time when processing the angle of the track ,to make perfect for the deviation caused by electrode wire. Support the gear clearance compensation ,it can compensate the gear clearance eror of the screw of machine and upgrade its proclsion.

Move AxesAuto Find Center,Auto Find Side,Manual Find Side,Mid Point etc.

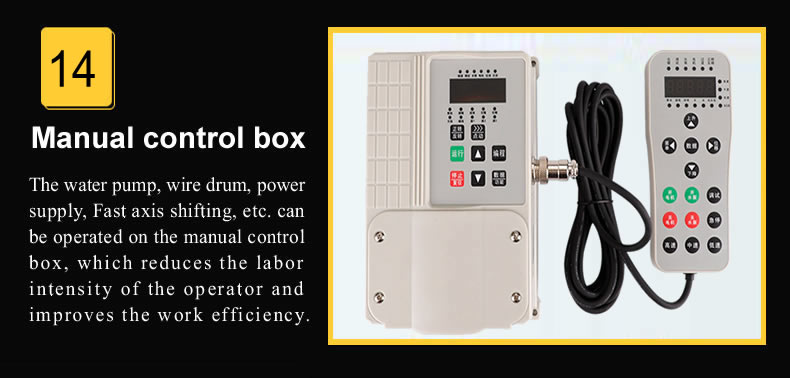

Pulse power of the control parameters directly from the software to control and improve the ability of pulsed power output of the interference, thereby increasing the roughness of workpiece, reducing the loss of molybdenum wire, you can choose a variety of pulse waveforms for a variety of processing conditions, improve the cutting ability of the workpiece.Simplifies the operation buttons on the control panel, a large number of button functions directly controlled by software to achieve.

ItemParameter
ModelDK7725ADK7735ADK7745ADK7750
Worktable stroke(X,Y)350×250mm350×450mm450×550/630mm500×630mm
Worktable size  (W×D)620×420mm650×450mm830×570mm920×680mm
The oil tank size (W*D*H)750×560×400mm780×480×400mm1000×680×400mm1250×780×480mm
Travel U、V60×60mm60×60mm60×60mm60×60mm
Max. Cutting Angle 6°/100mm6 Degree / 80mm6-15 Degree / 80mm6Degree / 80mm
Travel Z350mm400mm400-600mm500mm
Max. cutting thickness380mm450mm400-600mm400mm
Max. workpiece weight350kg450kg550kg650kg
Max. workpiece dimension520×350×350mm680×450×400mm800×550×400mm820×620×400mm

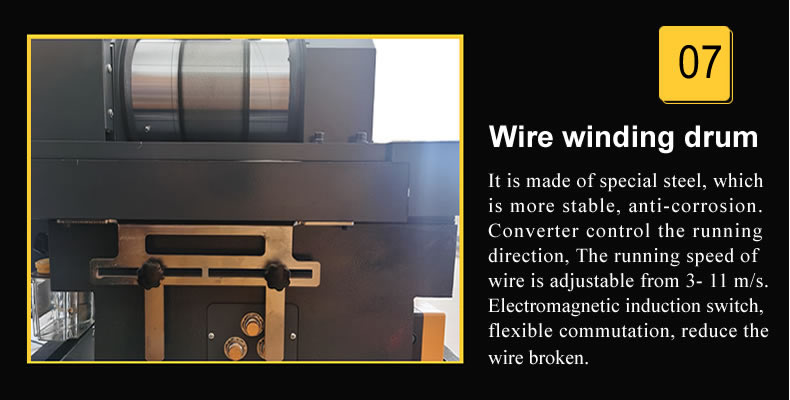

Wire Speed 1.18-11.18m/s1.17-11.17m/s3-11m/s1.17-11.17m/s
Diameter of wire0.16~0.22mm0.16~0.22mm0.16~0.22mmDia. 0.16~0.22mm
Wire tension10-30N10-30N10-30N10-30N
Positioning accuracy0.02/300mm0.02/300mm0.02/300mm0.02/300mm
Repeatable accuracy±0.005mm±0.01mm±0.01mm±0.01mm
Precision machining0.01mm(SKD11 or Gr12,20x20x20mm)0.015mm0.015mm0.015mm
Machine dimension (W×D×H)1350×1050mm×1700mm1500×1150×1700mm1650×1350×1700mm1750×1480×1750mm
Machine weight (approx.)1000Kg1350Kg1650Kg1900Kg
Water tank
Working liquid box 80L/550×455×320mm
Working Methode Filtration System
Filter accuracy  0.01mm
Working liquidWater-Soluble WEDM Concentrate
Pulse Power
Control box dimension580x580x1860mm
Control box weight60kg
Standard3×380V ±10% ,50/60Hz,2.5KVA
Max. Cutting Currrent10A
Max cutting speed ≥3002/min
Best Surface Finish   Ra2.5~3.2μm
CNC System
Operating system (OS)Linux & Windows 7&10
CNC Control systemX8-WEDM & Autocut
 Programming systemUCCAD & AutoCAD
Hardware ConfigurationsAsus computer, LED display
Control method and axis5-axis control and 4 axis simultaneous program with
Single pulse advancing accuracy0.001mm
Data Port  USB, LAN
Programming Code3B/ ISO/G code
Menu Language  Chinese/English
DimensionMetric/Inch
OptionAluminum cutting
Power Supply
Power   220 / 3-380V±10%   50±1HZ
Working temperature  10-35℃
Consumption 2.5KVA
